Contents EBJ Home Single molecule measurements and biological motors

Apparatus schematic

Click on an area of the image for more details:

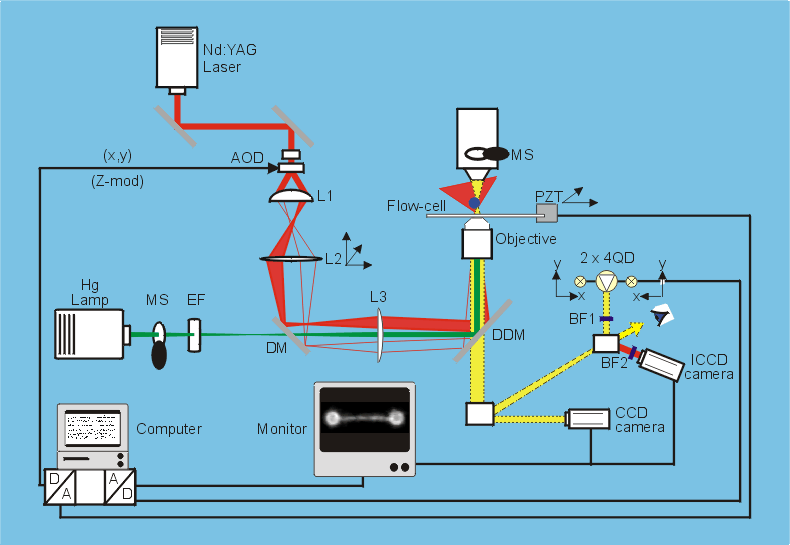

Trapping Apparatus BF2 BF1 M2 M1 Quadrant Photodiodes Eyepiece Dual Dichroic Dichroic L3 L2 L1 CCD camera ICCD Camera Flow Cell Objective Piezo Stage Condenser (Brightfield Illumination) AOD's Nd:YAG laser Excitation Shutter Excitation Filter Mercury Lamp Computer Video Monitor
